30 Serie Zahnradpumpen UNI Umkehrbare

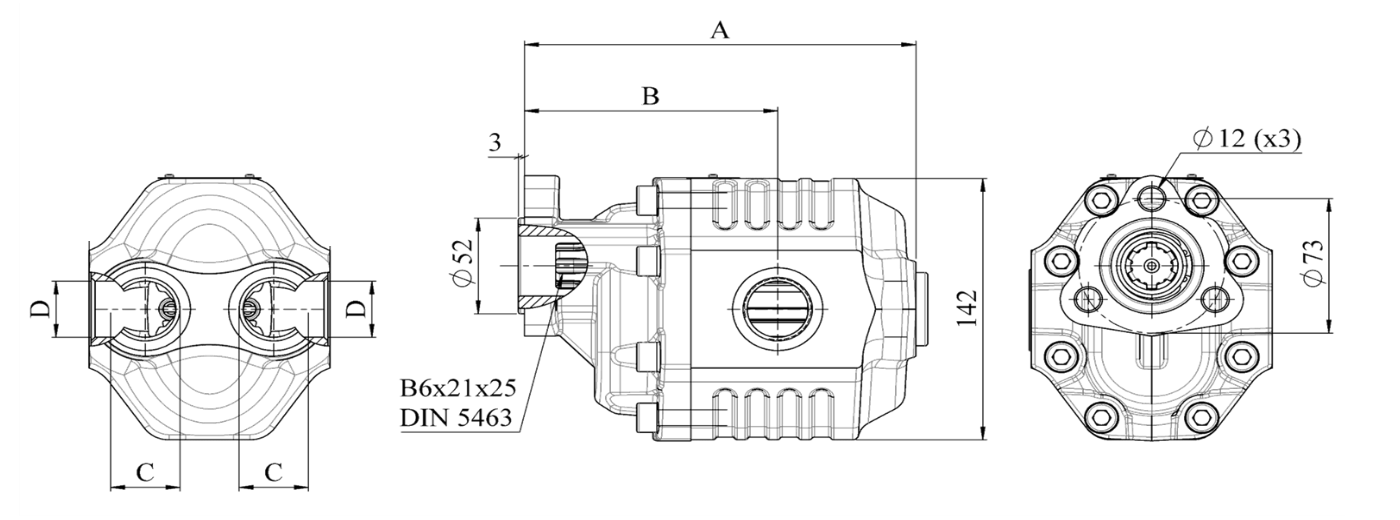

Code	Product Description	Displacement ( cm³/rev )	Working Pressure ( bar )	Max Peak Pressure ( bar )	Max Continuous Speed ( RPM )	A	B	( C ) Oil Inlet	( D ) Oil Outlet	Weight ( kg )
33001741	17 cc UNI 3 Bolt Bi-Rotational Gear Pump 4 Port	17	290	325	2500	157	105	G1"	G1’’	9,6
33002241	22 cc UNI 3 Bolt Bi-Rotational Gear Pump 4 Port	22	290	325	2500	160	105	G1"	G1’’	9,9
33002741	27 cc UNI 3 Bolt Bi-Rotational Gear Pump 4 Port	27	290	325	2500	163	105	G1"	G1’’	10,2
33003441	34 cc UNI 3 Bolt Bi-Rotational Gear Pump 4 Port	34	280	310	2200	168	105	G1"	G1’’	10,5
33004341	43 cc UNI 3 Bolt Bi-Rotational Gear Pump 4 Port	43	270	300	2000	172	109	G1"	G1’’	10,9
33005141	51 cc UNI 3 Bolt Bi-Rotational Gear Pump 4 Port	51	240	280	2000	176	110	G1"	G1’’	11,3
33006141	61 cc UNI 3 Bolt Bi-Rotational Gear Pump 4 Port	61	220	250	1900	182	119	G1"’	G1’’	11,7
33008241	82 cc UNI 3 Bolt Bi-Rotational Gear Pump 4 Port	82	205	230	1900	195	126	G1"	G1’’	12,8
33009241	92 cc UNI 3 Bolt Bi-Rotational Gear Pump 4 Port	92	180	220	1900	200	126	G1"	G1’’	13,3
