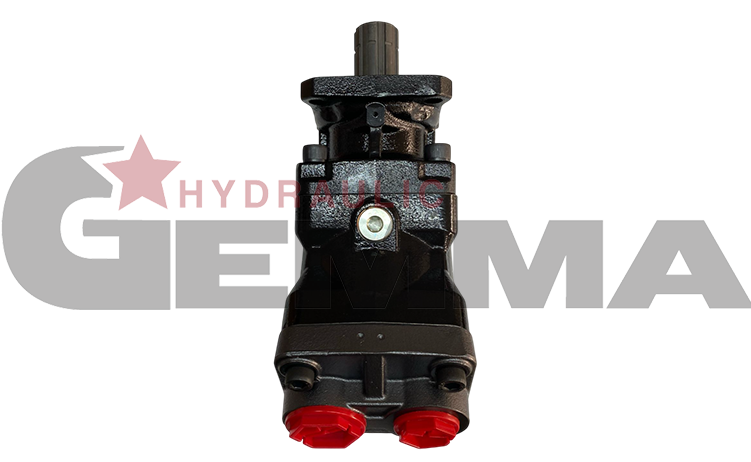

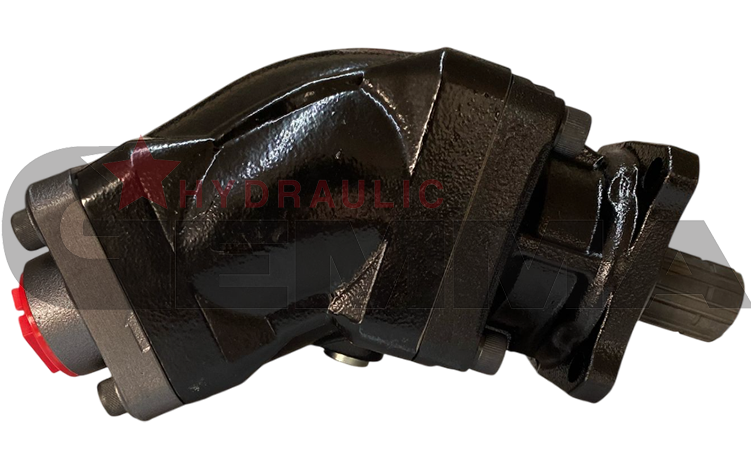

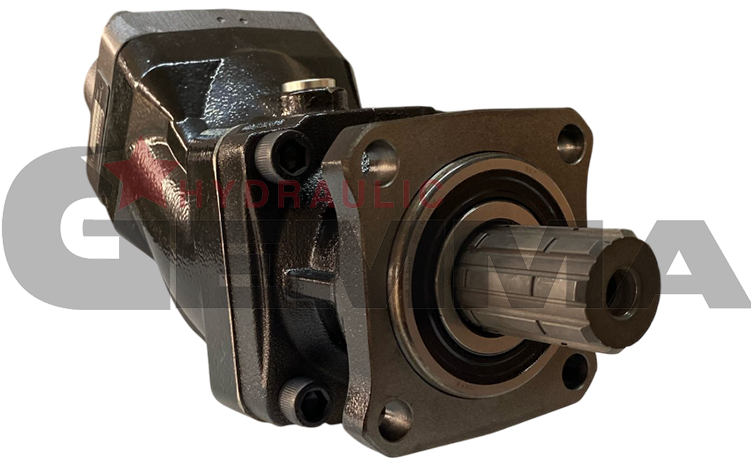

Bombas de Pistones Acodada Serie Z

Code	Product Description	Displacement	A	B	C	D	E	F	G	H	L	M	Outlet	Inlet		Weight
			mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	N	P	Q
															mm
35703431	34 cc Bent Axis Piston Pump Right Rotation Z Type	34	109	113	220	308	107	157	107.5	102	95	46	3/4’’ G	1’’ G	45	10.5
35703432	34 cc Bent Axis Piston Pump Left Rotation Z Type
35704731	47 cc Bent Axis Piston Pump Right Rotation Z Type	47	109	113	220	308	107	157	107.5	102	95	46	3/4’’ G	1’’ G	45	10.5
35704732	47 cc Bent Axis Piston Pump Left Rotation Z Type
35705631	56 cc Bent Axis Piston Pump Right Rotation Z Type	56	118	118	240	328	118	173	107.5	110	110	60	1" G	1” ¼ G	51	13.5
35705632	56 cc Bent Axis Piston Pump Left Rotation Z Type
35706431	64 cc Bent Axis Piston Pump Right Rotation Z Type	64	118	128	240	328	118	173	107.5	110	110	60	1’’ G	1” ¼ G	51	13.5
35706432	64 cc Bent Axis Piston Pump Left Rotation Z Type
35708431	84 cc Bent Axis Piston Pump Right Rotation Z Type	84	118	128	240	328	118	173	107.5	110	110	60	1’’ G	1” ¼ G	51	13.5
35708432	84 cc Bent Axis Piston Pump Left Rotation Z Type
35710631	106 cc Bent Axis Piston Pump Right Rotation Z Type	106	118	128	240	328	118	173	107.5	110	110	60	1’’ G	1” ¼ G	51	13.5
35710632	106 cc Bent Axis Piston Pump Left Rotation Z Type
