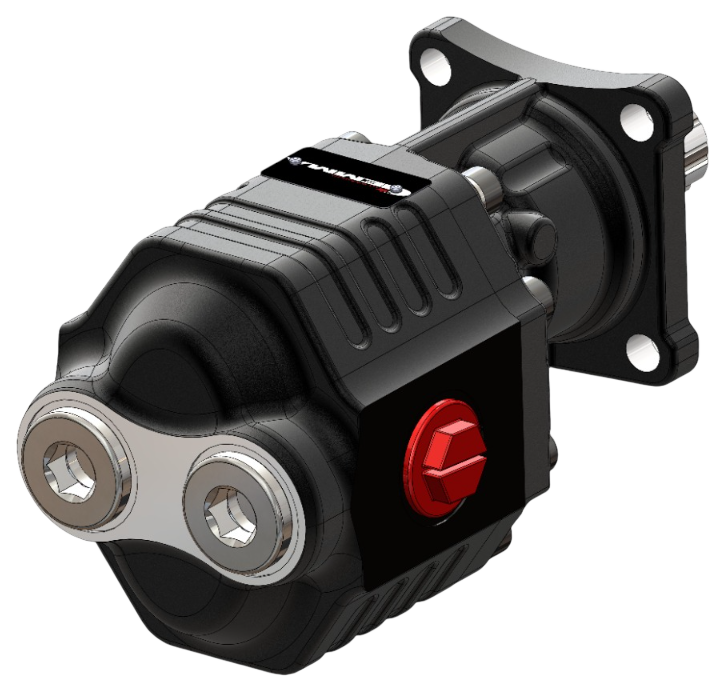

DPA 30 Serisi Çift Dönüşlü ISO

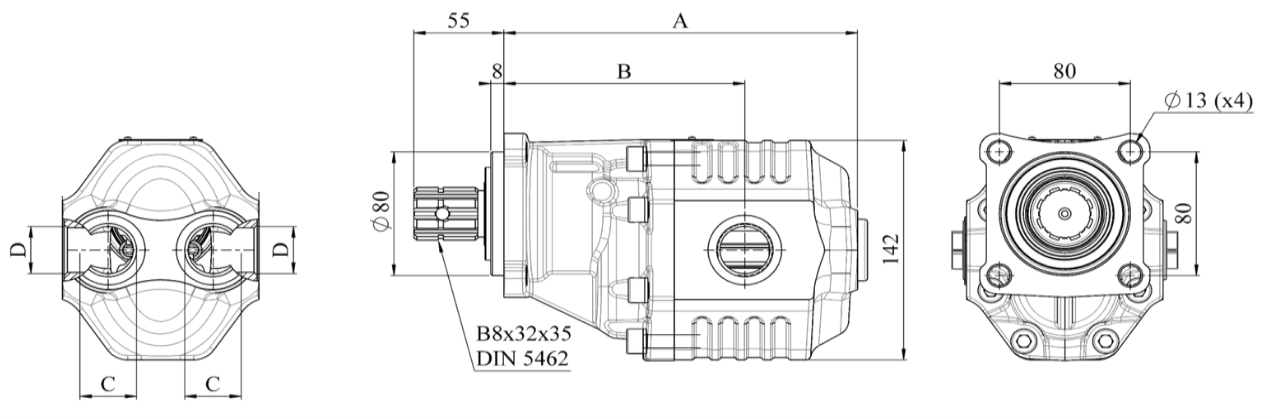

Code	Product Description	Displacement ( cm³/rev )	Working Pressure ( bar )	Max Peak Pressure ( bar )	Max Continuous Speed ( RPM )	A	B	Oil Inlet ( C )	Oil Outled ( D )	Weight ( kg )


33001751	17 cc ISO 4 Bolt Bi-Rotational Gear Pump 4 Port	17	290	325	2500	178	126	G 1"	G1"	11,2
33002251	22 cc ISO 4 Bolt Bi-Rotational Gear Pump 4 Port	22	290	325	2500	181	126			11,5
33002751	27 cc ISO 4 Bolt Bi-Rotational Gear Pump 4 Port	27	290	325	2500	184	126			11,7
33003451	34 cc ISO 4 Bolt Bi-Rotational Gear Pump 4 Port	34	280	310	2200	189	126			12,1
33004351	43 cc ISO 4 Bolt Bi-Rotational Gear Pump 4 Port	43	270	300	2000	193	129,5			12,5
33005151	51 cc ISO 4 Bolt Bi-Rotational Gear Pump 4 Port	51	240	280	2000	197	131			12,8
33006151	61 cc ISO 4 Bolt Bi-Rotational Gear Pump 4 Port	61	220	250	1900	203	139,5			13,3
33008251	82 cc ISO 4 Bolt Bi-Rotational Gear Pump 4 Port	82	205	230	1900	216	147,2			14,4
33009251	92 cc ISO 4 Bolt Bi-Rotational Gear Pump 4 Port	92	180	220	1900	221	147,2			14,9
33010051	100 cc ISO 4 Bolt Bi-Rotational Gear Pump 4 Port	100	180	220	1500	226	147,2			15,3
